Digital Wireless Long Range Video Audio Transmitter NLOS Fast Moving Transmission AES 128 / 256 bits
Mobile Wireless Video Transmitter:
KP-SD20 is a new arrival digital wireless video audio transmitter which adopts the latest technologies of COFDM modulation and MPEG-4 image compression that enables good NLOS (Non line-of -sight) transmission with DVD quality video. The transmitter is compact size with strong power amplifier for longer-range transmission.Good heat resistant with two cooling fans.Be safety with AES128/256bits. Can work well in fast-moving transmission.
Special Feature:
- COFDM modulation, Stable transmission
- MPEG-4/H.264 video compression, DVD video quality
- Strong casing with built-in two cooling fans
- Mobile and NLOS transmission
- Great security by encryption of AES 128 bits
- Low system latency
- Modular design, compact structure, OEM design
- Can be customized to add additional features
Features:
- COFDM modulation, Stable transmission
- MPEG-4 video compression, DVD video quality
- Military aluminum housing ,Strong casing with built-in two cooling fans
- Mobile and NLOS(Non line-of-sight) transmission
- Great security by encryption of AES 128 bits
- Low system latency
- Modular design, compact structure, OEM design
- Several wavebands available: VHF/L/ S
- Can be customized to add additional features,such like HD/HD-SDI, data port, Ehernet and etc..
Specifications:
| Modulation | CODFM |
| DC input | DC12V-DC14V |
| Working Current | ≤4.7A@DC12V |
| Constellation | QPSK,16QAM,64QAM (optional) |
| FEC | 1/2,2/3,3/4,5/6,7/8 (optional) |
| Carrier | 2K |
| Guard Interval | 1/32,1/16,1/8,1/4 (optional) |
| Frequency | 138-4400MHz (available) |
| RF power output | 15W |
| A/V interface | RCA |
| RF interface | N type |
| Flatness | ≤2dB(within full frequency range), ≤0.5dB(within 8MHz) |
| Video Harmonic | 1Vp-p @ 75Ω, NTSC/PAL adaptive |
| CBER | <2.0E-4 |
| Video Compression | MPEG-4/H.264 |
| Resolution | 1280*720 |
| Video Rate | 6Mbps |
| Casing Protection | IP66 (dustproof, rainproof) |
| Work environment | -30~70° |
| Dimension | 220*140*60MM |
| Weight | 2.3kg |
COFDM Wireless Video Transmitter Application:
This special designed system is for long range distance for any AV equipments , has been widely used in Police Forces, First Responders, Security Services, Fire Services, Port Security, Homeland Security, Traffic Management, Police Technical Support Units, Special Forces, Military Command and Control Posts, Airport, Border Control, Major Incident Support.

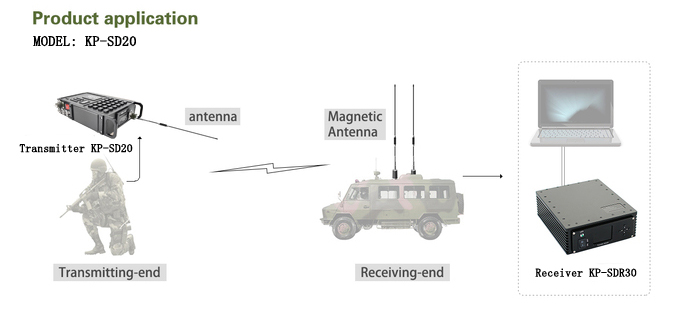

1) Manpack -- vehicle:
2) Vehicle --- fixed station:
Our Service:
1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.
Whatever your wireless surveillance application or budget, we can find the right solution for you.
Contact us! We can customize any solution to fit your requirements.
|
|
