100 - 1000mW Mini Video COFDM Transmitters For UAV / UGV Long Distance

Product Categories
Kimpok Technology Co., Limited
Contact Now

100 - 1000mW Mini Video COFDM Transmitters For UAV / UGV Long Distance

Brand Name : Kimpok

Model Number : KP-S1000A

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiaiton

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 1,000pcs per month

Delivery Time : 3-7 days

Packaging Details : export standard packing

RF output Power : 100-1000mW adjustable

Frequency : 300-900MHz(option),12G/2.4G/5.8GHz(customized)

Distancent : max 20km LOS distance (on helicopter)

Modulation : COFDM

Casing Protection : Casing Protection

Weight : 195g(without battery); 288g(with battery)

Contact Now

100 - 1000mW Mini Video COFDM Transmitters For UAV / UGV Long Distance





Special Features:

  1. Minimum volume,lightweight and safety;
  2. LOS/NLOS distance:15-20km(on helicopter); 500m(personal carried);
  3. CODFM modulation, widely used in UAV or covert investigation applications;
  4. New design COFDM product, very easy for carrying and hiding.

Description:



It has character of super light weight and mall size,use MPEG2 coding format and COFDM (coded orthogonal frequency division multiplexing) digital modulation, provide high quality  image in revolution 720*576.Support NLOS transmission and reception as well high speed mobile transmission.Can be carried in your pocket / briefcase for secrect evidence. it can send live video of the scene circumstances to the rear command post. Widely used in UAV,public security organs, procuratorate, court and security bureau etc.





Feature:



  • COFDM modulation, Stable transmission
  • MPEG-2 video compression, DVD video quality;
  • Modular design and highly integrated
  • NTSC/PAL automatically adapt ,support user adjustable;
  • Shortly time delay;
  • Supports high-speed mobile NLOS ( Non Light Of Sight ) transmission;
  • Lithium battery for power supply(continuous working time is 3 hours max)
  • Adjustable working frequency,bandwidth,RF power and etc.
  • Transmission security by encryption of AES 265 bit
  • Good quality image without any mosaic;
  • Transmitter only has 195g net weight(without battery),very easy for portable and UAV applications.
  • Matched with multifunction amplifier for longer range requirement.



Transmitter specifications:



 Modulation  COFDM
 DC Input  DC7.5-12V
 Working Current  0.9A-13A
 Constellation QPSK,16QAM,64QAM(optional),
QPSK/16QAM/64QAM @ 6/7/8MHz
 FEC  1/2,2/3,3/4,5/6,  7/8
 Guard Interval  1/32,1/16,1/8,1/4
 Bandwidth  2/2.5/4/8M(adjustable)
 A/V Interface  BNC / RCA
 Frequency

 300-900MHz(option)
 Encryption  AES 128 bit / ALLTECH Basic scrambling
 Flatness

≤2dB(within full frequency range) ,

≤0.5dB (within 8MHz)
 Carrier  2K
 Power Output  30dBm max (100-1000mW adjustable),in 1dB step
  CNR   ≥-30dB @ 30dBm power output
 SHG   >52dBc
 Video Signal  1Vp-p@75Ω,NTSC/PAL adaptive
 CBER  <2.0E-4
 Video Compression  MPEG-2 4:2:0 /MPEG-4 (optional)
 Resolution  720×576(PAL) , 720×480(NTSC)
 Video rate   15Mbps(MAX)
Video Input 1 line PAL / NTSC analog video
 RF Interface  SMA
 Video Format  PAL/NTSC(adjustable)
 Battery Working time  1 hour
OperatingTemperature  -25℃~55℃
 Storage Temperature  -40℃~70℃
 Distance

max 20km LOS distance (on helicopter),1-500m NLOS distance
 Size  100*59*22mm
 Weight 195g(without battery)
288g(with battery)





Receiver specificatations:



Frequency  300-900MHz(option)
 Bandwidth  2/2.5/4/8MHz (adustable)
 RF Level Input  -92dBm~-20dBm / -105dBm~-20dBm
 RF Impedance  50Ω
 RF Interface  N female
 Modulation  COFDM
 Constellation QPSK,16QAM,64QAM(optional),
QPSK/16QAM/64QAM @ 6/7/8MHz
 FEC  1/2,2/3,3/4,5/6,7/8 (optional)
 Guard Interval  1/32,1/16,1/8,1/4 (optional)
 Carrier  2K,8K
 Video Decoding  ISO/IEC13818-2  MPEG-2MP@ML
 Aspect Ratio  4:3, 16:9
 Resolution   720×576(PAL) , 720×480(NTSC)
 Audio Output  Analog stereo left and right channels
 Lines of horizontal  625 or 525 Line
 Decryption  AES256 bit / ALLTECH Basic scrambling
 Working Voltage  AC220V / DC12V
 Temperature  -30~70°
 Dimension  430*310*65mm (1U Aluminium alloy box)
 Weight  3.5 kg

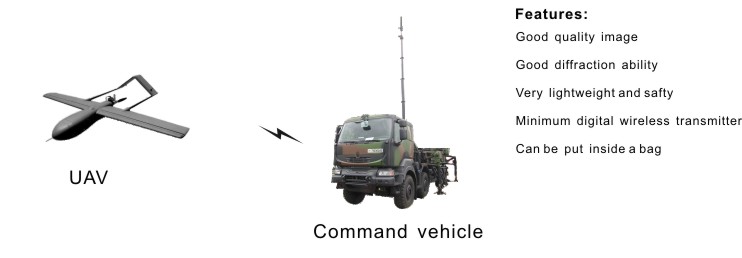

Product application:



100 - 1000mW Mini Video COFDM Transmitters For UAV / UGV Long Distance
